AERO ROVER NEO CONCEPT AIRCRAFT DESIGN AND DEVELOPMENT PAGE!

AERO ROVER BASIC HISTORY

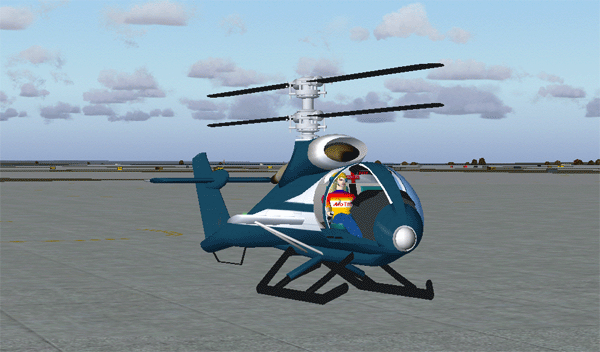

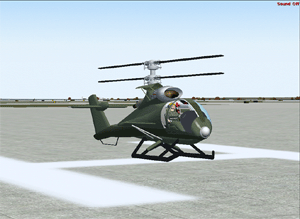

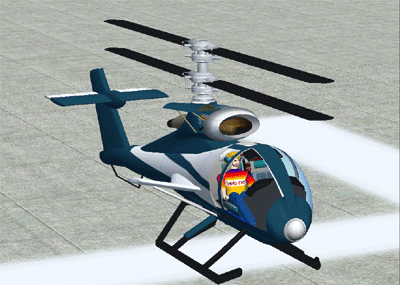

NEWEST BETA TEST SCREEN SHOTS



The MoTIS mission extends far into the area of neo concept design and development and as we are into the testing, and total development of numerous neo concept airframe technologies, we are also testing neo engines via flight simulations, and designing cutting edge avionics packages and more!!! We have stated for some time now that we have designed over 600 never before seen neo concept aircraft and that the very scope of our design mission has taken us into an uncharted territory as related to flight simulation exclusively and therefore we have opted out of certain aspects of trying to fulfill our mission with in the ranges of total simulations aircraft production and distribution.

 We are therefore at this moment in the business of translating numerous designs into various flight sim programs for testing and data analysis. What we do release into the public flight sim mainstream will be done under the S.B.P (coming soon) or as special freeware via our E.D.T.D testing agendas. As X-Plane and FS 2002-2004 gives us tremendous freedom to design and test neo concept designs, we also use MoTIS designed testing software , which will preview at some point in the near future....

The AERO ROVER is a next generation neo concept helicopter that is born of our E.D.T.D program and was specifically designed to test our High Velocity Internal Vertical Mounted Anti-Torque Converting System or  HVI- MACS H -6- MACS.

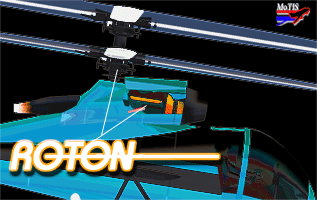

If you notice the Rotor system on these aircraft/Helicopters (From the provided photos) are mostly located internally with in a pressure mounted disk coiled system! (MoTIS neo concept designed subsystem). The coaxial placement of the rotor blades in not a new ideology at all in the design of helicopter rotary wing placement . The AERO ROVER is the sole design work of O WATSON and  J. Guess and the MoTIS design staff and the helicopter was designed back in the winter of 2003 but was not called the AERO ROVER but instead the RoVER WAVE. This aircraft was then stored in the now well known blue folder and awaited 3D CAD translation until the fall of 2004.

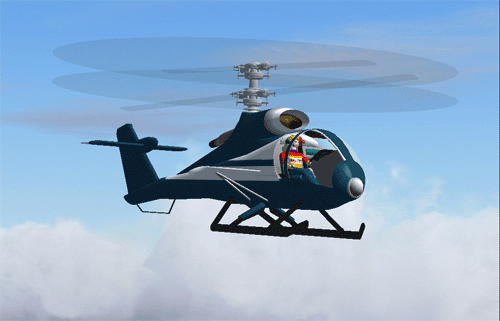

The AERO ROVER, appropriately known as the MH-T2V AERO ROVER is the first of many variants of this well designed vehicle. The chopper is the primary focused of the Experimental Design and Testing Department as it is must suited to the High Velocity Internal Vertical Mounted Anti-Torque Converting System or  HVI- MACS /H -6- MACS , it will be the first production model to fly the H -6- MACS first as a twin seated post prototype production aircraft set as a flight sim production real time aircraft only at this time , then a four seat transport chopper and finally a stretched mountain utility vehicle used as a next generation SAR aircraft!

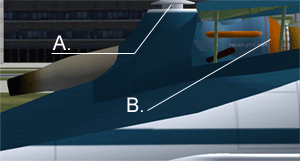

A.  H -6- MACS  B. TURBOSHAFT

THE TURBOSHAFT  CONNECTED TO THE  H -6- MACS , INSIDE THE  MH-T2V AERO ROVER

IN FS THE MAINTENANCE MODE

This aircraft is under intensive development at the E.D.T.D and will be handled by our main development branch M .I. , and this is not a M.E project at this time.

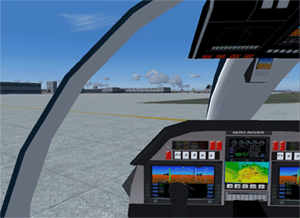

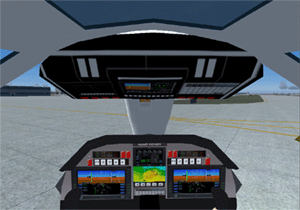

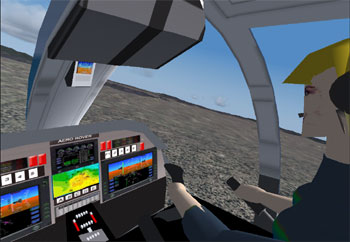

THE INTERNAL ENVIRONMENT/ VC IN FS 2004

--THIS IS NOT THE FINAL PRODUCT/WE MUST MAKE IT BETTER!--

Copyright (C) 2002, 2004 by MoTIS INDUSTRIES and M.D.T.D DESIGNS. All rights reserved.


All MoTIS aircraft to be released will be painted and textured by VA STYLES the MoTIS internal painters group!As of now numerous prototypes are undergoing detailed painting and texturing as numerous aircraft in our fleet were previewed in basic paint and now its time for some great eye candy also!!!

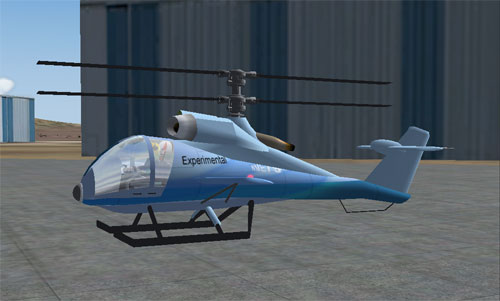

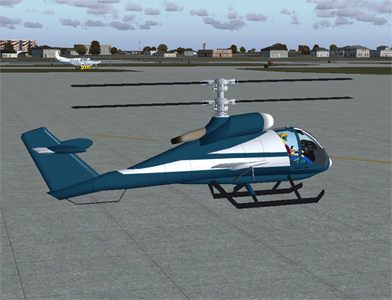

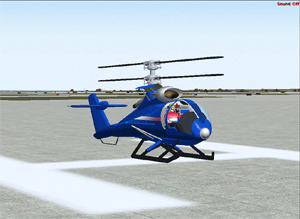

VA STYLES SAMPLE PAINT JOBS







Also our FS Aviators only represented test dummies and now its time for them to get some great renderings!

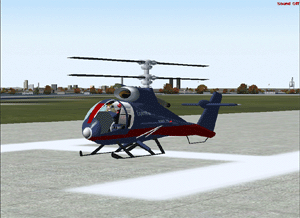

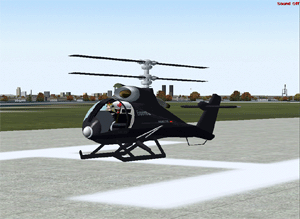

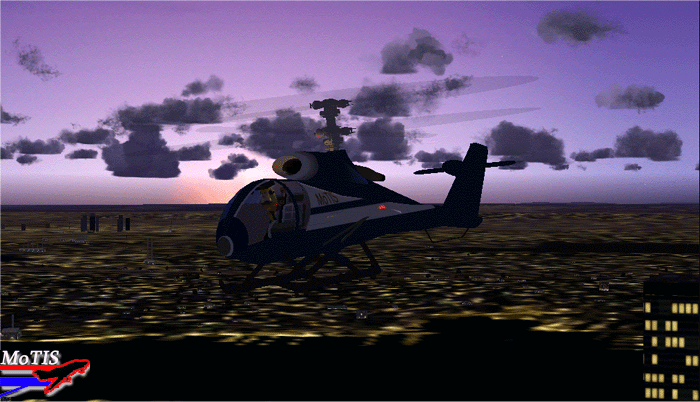

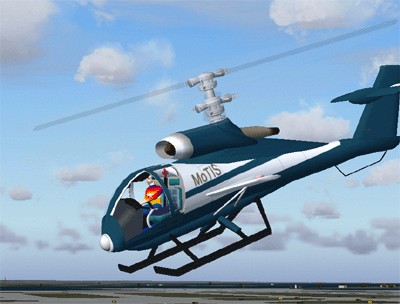

THE FIRST FLIGHT TEST PREVIEW

First flight conducted on 08/22/2004 START UP PROCEDURES


The AERO ROVER is an helicopter that is born of our E.D.T.D program and was specifically designed to test our High Velocity Internal Vertical Mounted Anti-Torque Converting System or  HVI- MACS H -6- MACS.


A computer assisted integrated internal swish disk vectoring system mounted on board relaying data to redundant titanium cable control linkage systems!!!


Increased stability and maximum lift is inherent in a dual mounted rotor blade system. Providing maximum lift at auto rotation! The induced drag events are another issue we will get to later...


Airfile data and testing will provide increased tweaking to this aircraft over its development life time!

AERO ROVER Design legally Copyrighted (C) 2004 by MoTIS INDUSTRIES.

Copyright (C) 2002, 2004 by MoTIS INDUSTRIES and M.D.T.D DESIGNS. All rights reserved.

TEST BED AIRCRAFT DATA LINK  THE MoTIS INDUSTRIES (E.DT.D) AEROROVER  MoTIS virtual flight lab

LEADERS IN NEO CONCEPT AVIATION


Important note: Don't be fooled! If you see them any where else then they got the idea from us and they are in direct copy right or patent violation of our intellectual property.

Note: All of these concept aircraft are from the design staff of the MoTIS CAD engineering board and our CEO. We do not copy others work or design real world concept aircraft at all. Each of our aircraft are from our heads and are the sole intellectual property of MoTIS and we can prove it. We take great pride in all of our true concept designs and do not create real world aircraft, model aircraft variants or concepts, or other designers concept work at all ,but stand by our mission statement in truly creating "OUR OWN DESIGNS"

--THIS IS NOT THE FINAL PRODUCT/WE MUST MAKE IT BETTER!--

NOTE: WE ARE NOT A FREEWARE DESIGN GROUP NOR IS OUR MISSION RELATED TO FLIGHT SIMULATIONS EXCLUSIVELY IN THE EXECUTION OF THE SALES OF OUR PAYWARE PRODUCTS OFFLINE OR ONLINE. PLEASE DO NOT MISUNDERSTAND OUR FUNCTION IN FLIGHT SIMULATIONS, THEREBY LOSING THE SCOPE OF WHAT YOU ARE VIEWING AT MoTIS INDUSTRIES.

THANK YOU


 MoTIS Industries. We (MoTIS VJD) are a full fledge third party FS business and not a VA in structure or function. While we use simulations to test and prove certain neo concept ideas we in no way are just a MSFS/ XPLANE flight simulations function but exist beyond the world of simulations as a real world applications division using simulations to test theoretical or concept ideas for MoTIS copyright and patent uses.
